OUTLET COMBINATION

Outlet Combination ensures proper delivery of fabric from stenter frame

  • Separate drives will be provided for easy synchronisation and maintenance free work
  • Cooling cylinders with diameter 570 mm and 650 mm can be provided as per requirement with rotary joint
  • In Plaiter maximum lap length possible is 1500 mm
  • In Small Batcher maximum diameter possible is 500 mm
  • In Surface Winder maximum diameter possible is 1800 mm & 2000 mm
  • In Center Winder maximum diameter possible is 2000 mm
  • Antistatic Device for both Plaiter & Batcher will be provided
  • Selvedge Displacement Assembly for Surface Winder will be provided

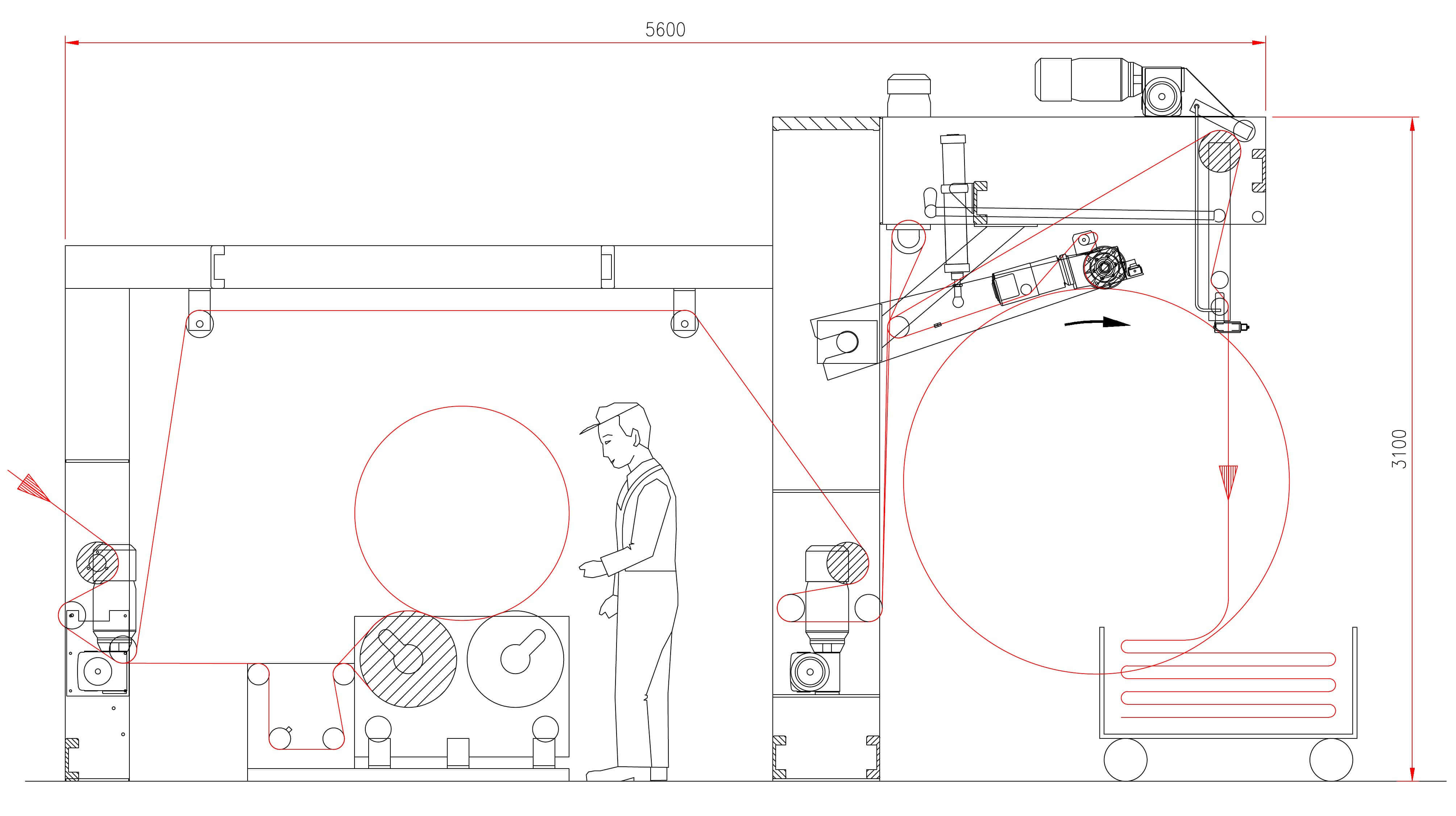

Outlet Combination with Plaiter& Batcher



Outlet Combination with 2 Cooling Cylinders, Brushing Unit, J-SCRAY, Inspection Table, Plaiter& Batcher



Outlet Combination with Plaiter, Small Batcher & Center Winder



Outlet Combination with Special Small Batcher & Surface Winder
